Cast steel globe valve
A globe valve controls flow by moving a disc against its seat. The product name identifies the seat and bonnet configuration documented in this section.
Review dimensions, component materials and pressure-temperature data in the source images below. This is a historical reference; current standards, fluid compatibility and final specifications require confirmation before purchase.
Specification and availability confirmed on inquiry
Images and technical information are extracted from the product reference document. Final selection, availability and supply terms are confirmed after reviewing your request.
Product technical image

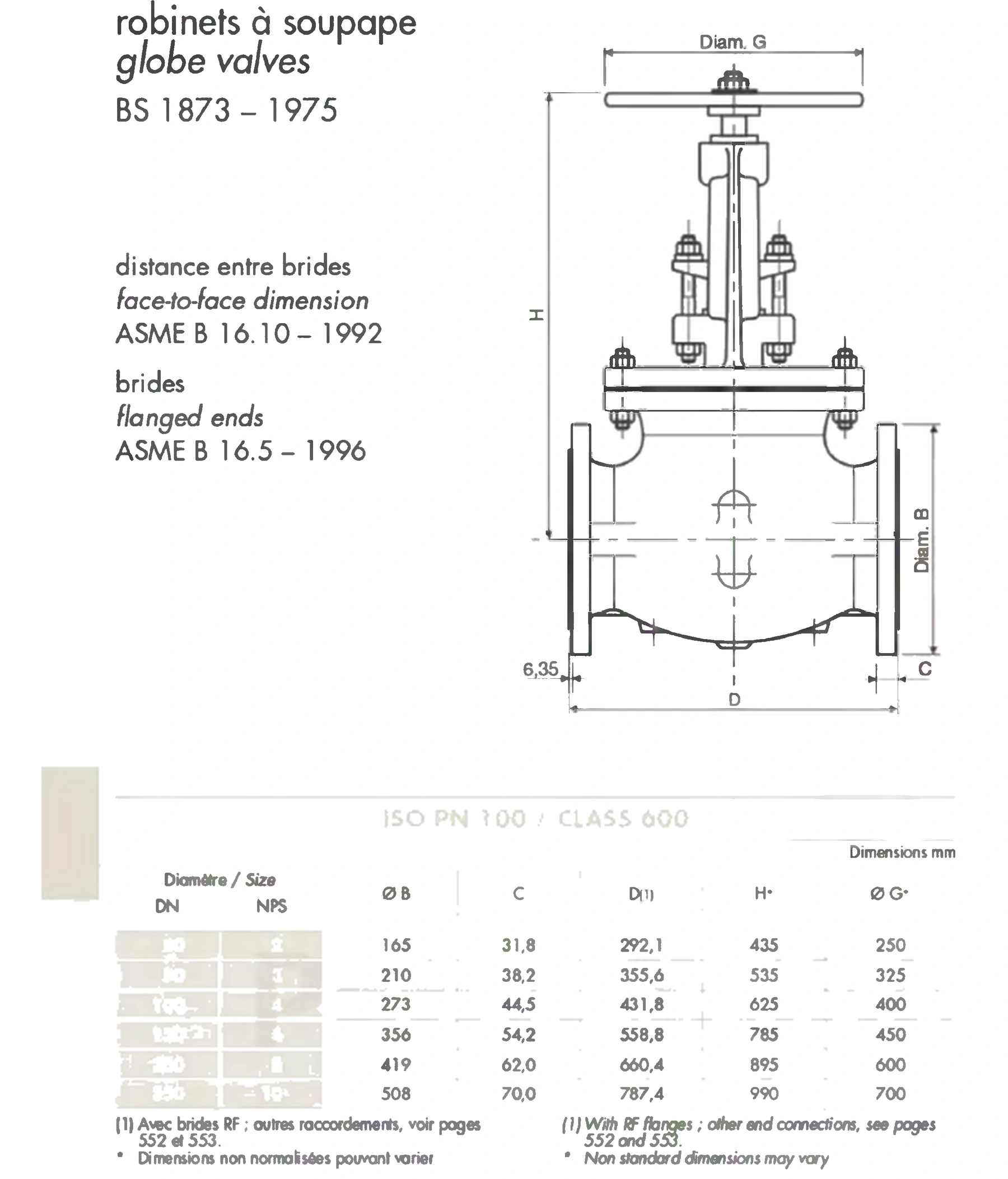

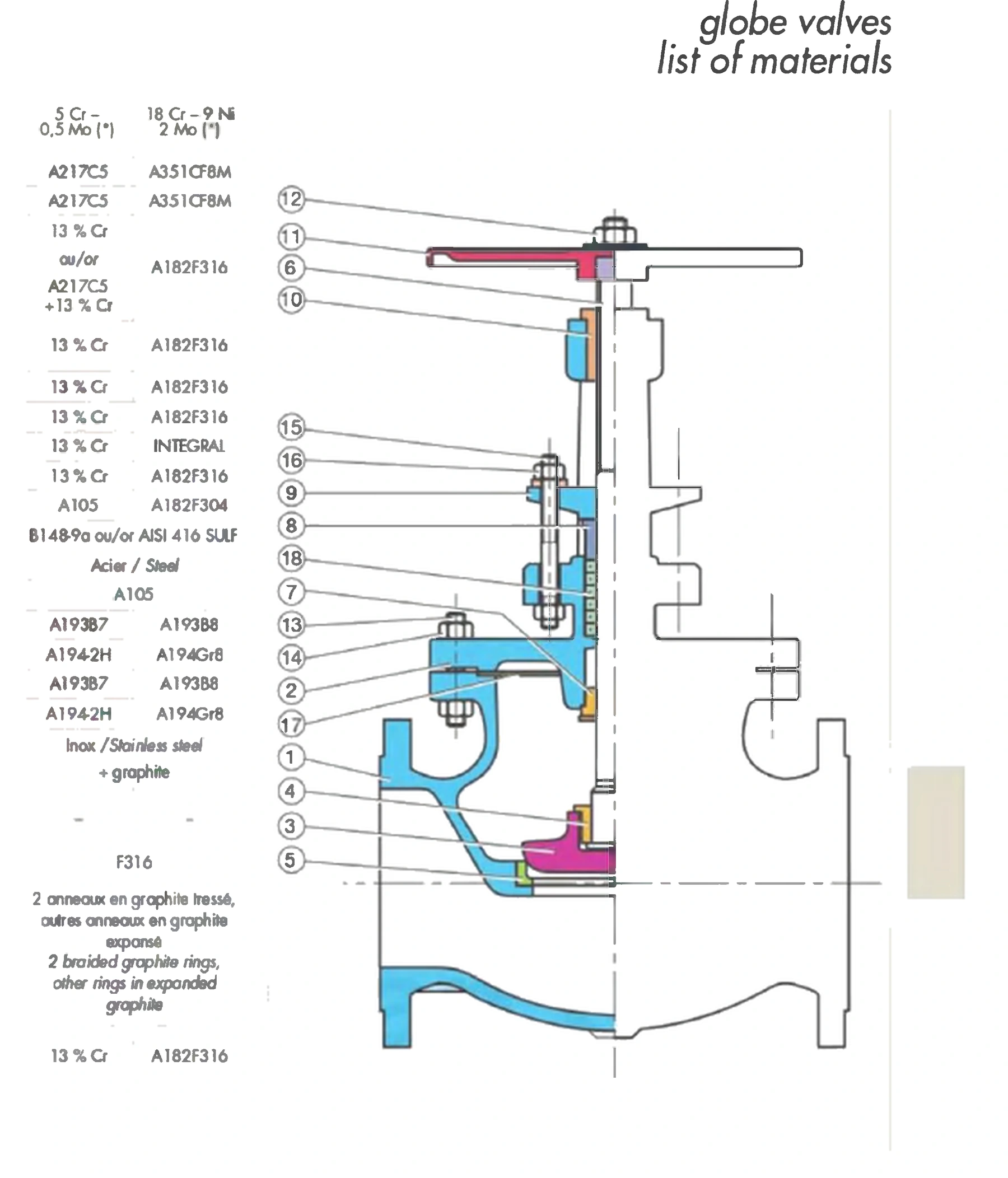

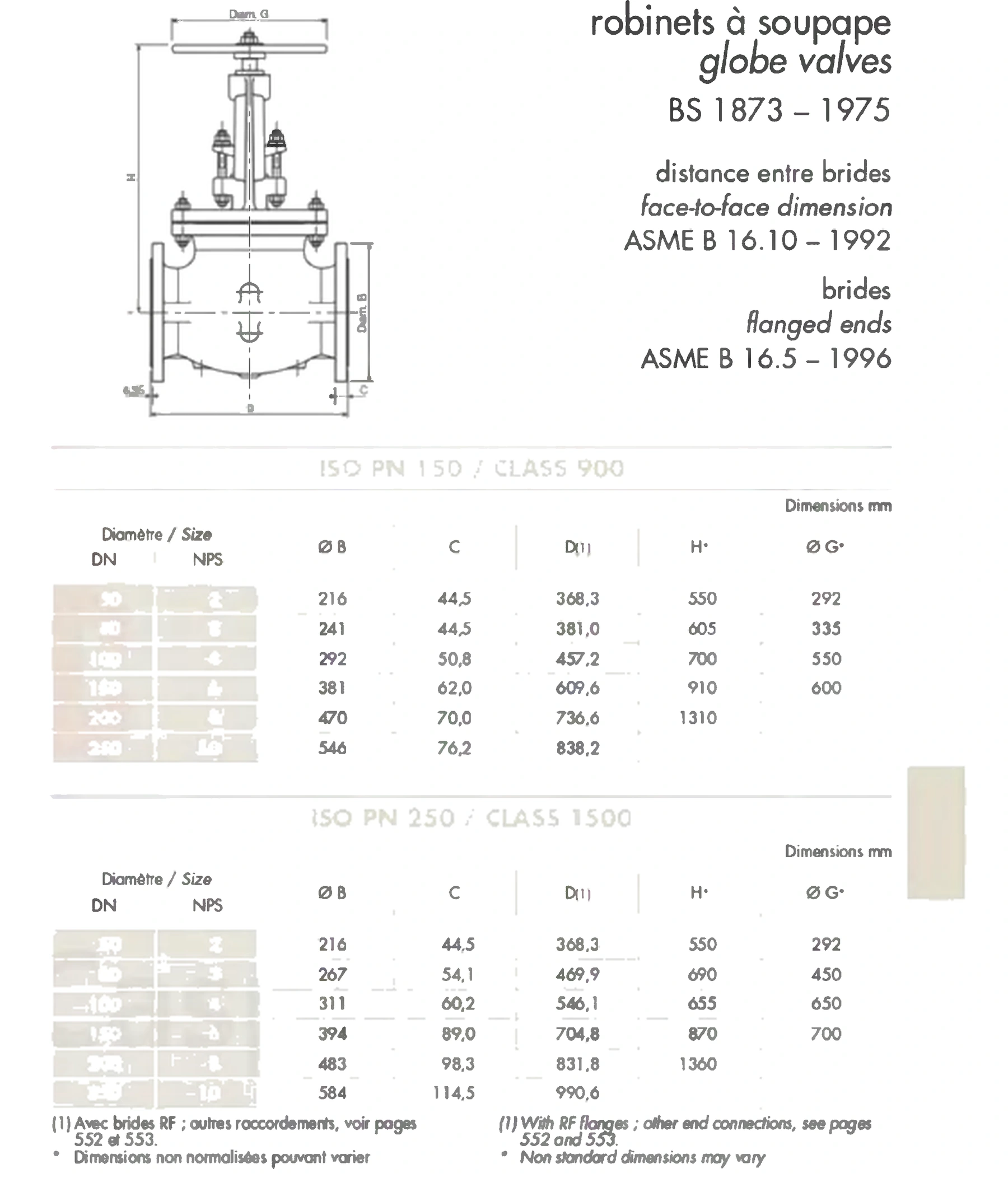

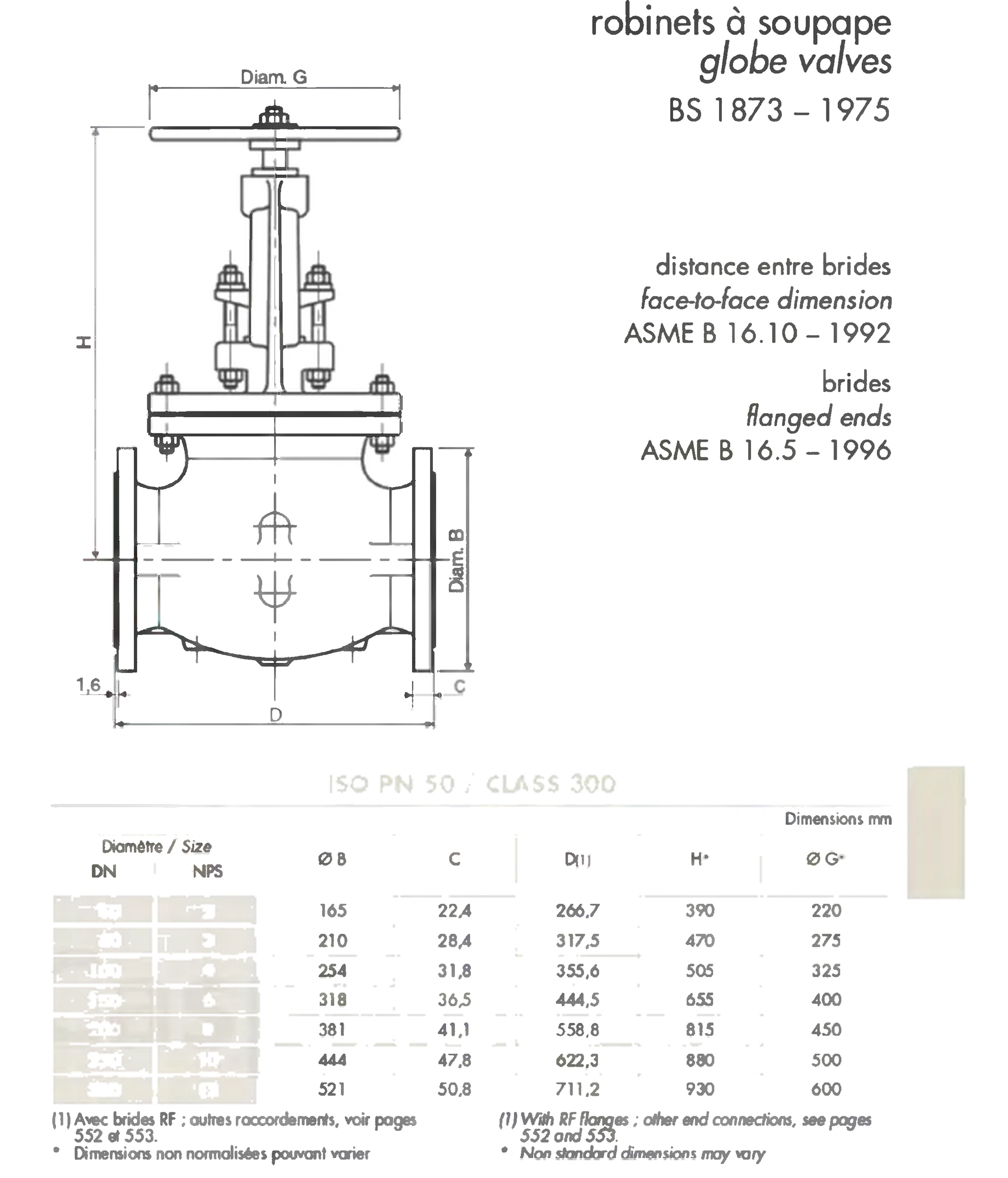

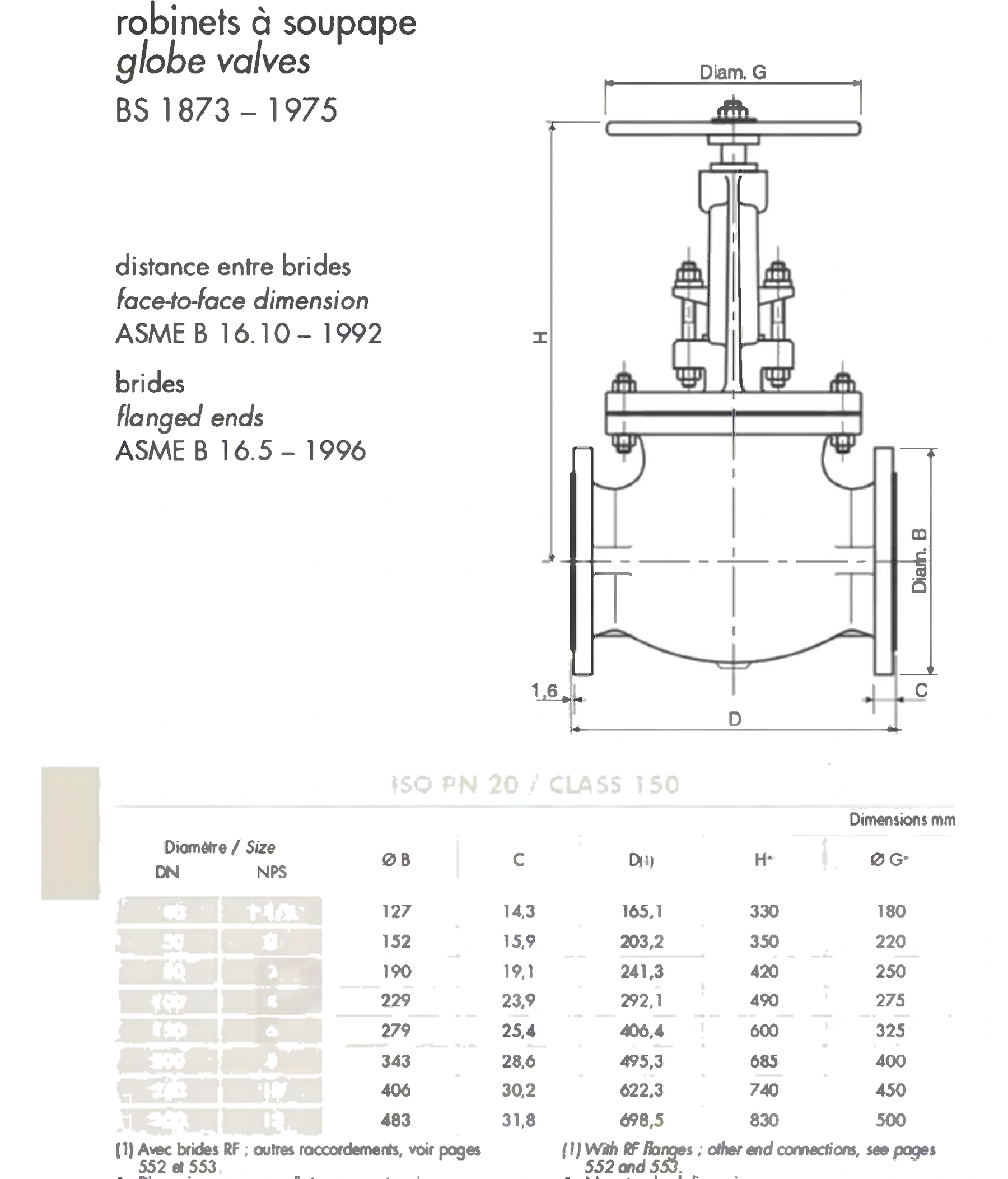

Catalogue reference, PDF page 23, right halfCatalogue reference, PDF page 24, left halfCatalogue reference, PDF page 24, right halfCatalogue reference, PDF page 25, left halfCatalogue reference, PDF page 25, right half
A globe valve controls flow by moving a disc against its seat. The product name identifies the seat and bonnet configuration documented in this section.
Review dimensions, compone
A globe valve controls flow by moving a disc against its seat. The product name identifies the seat and bonnet configuration documented in this section.
Review dimensions, compone
A globe valve controls flow by moving a disc against its seat. The product name identifies the seat and bonnet configuration documented in this section.
Review dimensions, compone
A globe valve controls flow by moving a disc against its seat. The product name identifies the seat and bonnet configuration documented in this section.
Review dimensions, compone
