Forged gate, welded bonnet, full port

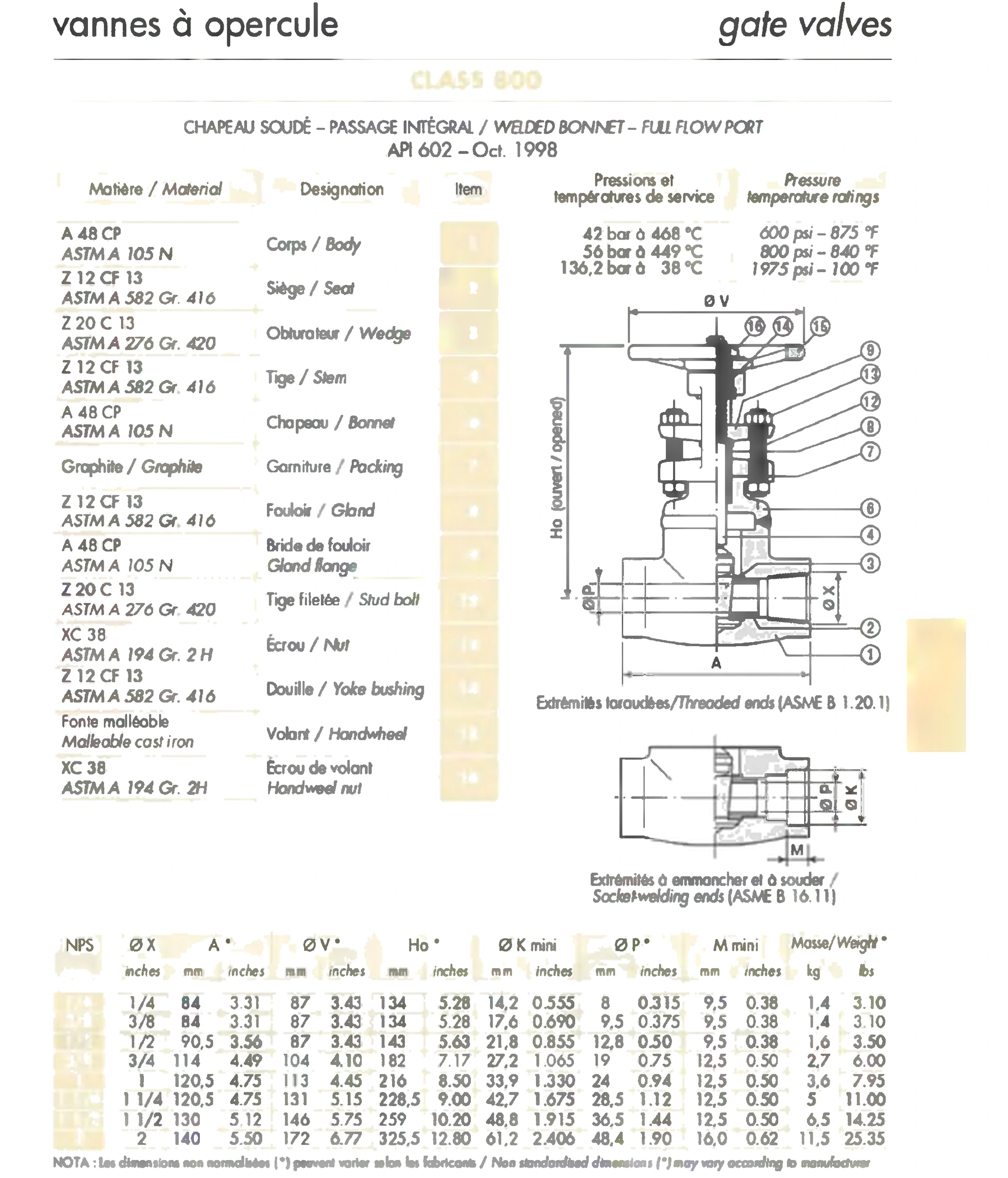

A gate valve isolates a pipeline. Bonnet construction, flow port and end connections must be selected for the line conditions. The reference images show the corresponding construction and dimensional tables.
Review dimensions, component materials and pressure-temperature data in the source images below. This is a historical reference; current standards, fluid compatibility and final specifications require confirmation before purchase.
Specification and availability confirmed on inquiry
Images and technical information are extracted from the product reference document. Final selection, availability and supply terms are confirmed after reviewing your request.
